Quick Guide Types of Vehicle Combinations
Senast uppdaterad: 2025-06-04
New Driver user and add a Vehicle combination to "Mina ekipage" (My Vehicle combinations)
After signing in, you need to upload your Vehicle Combination and save it under "My Vehicle Combinations" (Mina ekipage).

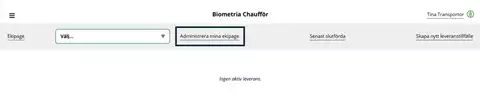

You do this by clicking on "Administer My Vehicle Combinations" (Administrera mina ekipage). See Image 1.
Image 1

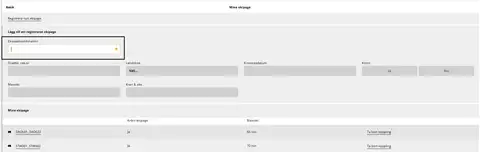

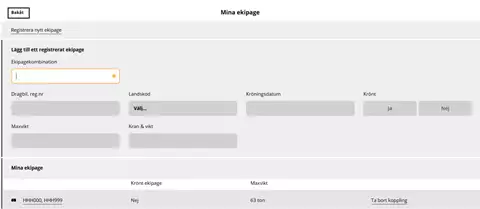

In Ekipagekombinationer, (the Vehicle combination box), you can search for all the vehicle combinations that are available in Chaufförsklienten/the Driver Client manual, and "Mätplatsstödet, MPS" (the Measurement Site System) (Image 2).
Image 2
In the box, you can search and get all the registration numbers for tractor units, tractor units with trailers, and trailers that are in the system Chaufförsklienten/the Driver client.

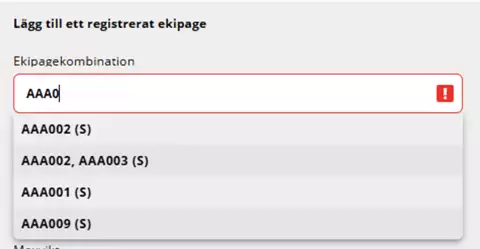

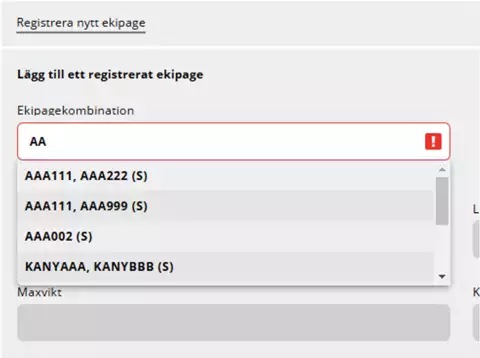

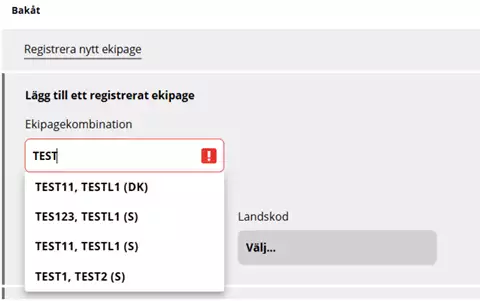

Enter two characters in the search box, for example two A (AA) and all of the tractor units, tractor units with trailers, and trailers will appear (Image 3).

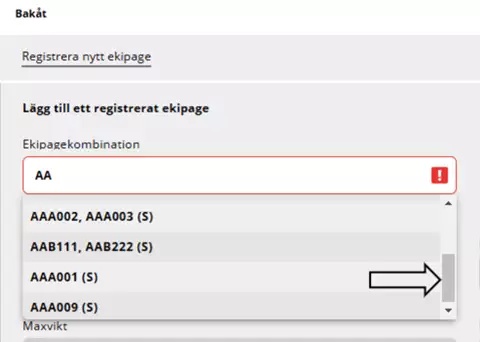

In the drop-down bar on the edge, you can scroll down and see if you can find your Vehicle combination (Image 4).
If you add additional characters to the search box, the selection of combinations in the list will be reduced (Image 5).
Image 3
Image 4
Image 5
If your Vehicle combination is not in the search box, read more in chapter "The Vehicle combination is not in Chaufförsklienten/the Driver Client - Register a new Vehicle combination". Here are some examples of when you need to go to chapter The Vehicle combination is not in Chaufförsklienten (the Drivers client) - Register a new Vehicle combination.
Examples of use cases:
- Your registration number does not appear in the box on tractor unit + trailer.
- The registration number of the tractor unit is available, but not combined with the correct registration number with the trailer.
- The registration number is available on the tractor but not on the trailer.
- The registration number is on the trailer but not on the tractor.
- The Vehicle exists but it is the wrong country.
Observe! We only support two registration numbers on a Vehicle combination. A tractor registration number and a trailer registration number. For more information, read the documentation on Information about Vehicle Combination types. (Information om Ekipagetyper).
Choose the Vehicle combination that matches your car and trailer registration number. Click "Spara" (Save), for the combination to be saved to "My Vehicle combination" (Image 6).
You can add several vehicle combinations under "Mina ekipage" (My Vehicle combination).
If you change the trailer on the tractor, this is a new Vehicle combination that must be set up.
Image 6

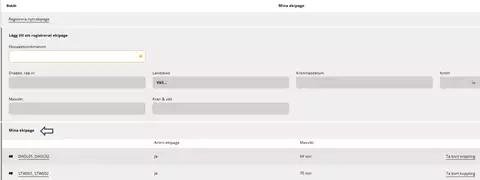

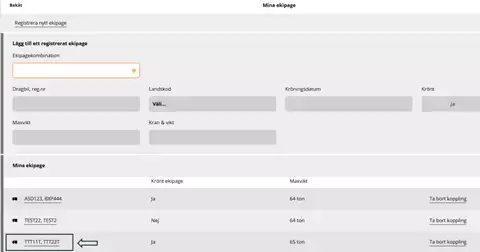

Now the Vehicle combination is under "My Vehicle combinations" (Image 7).
Image 7

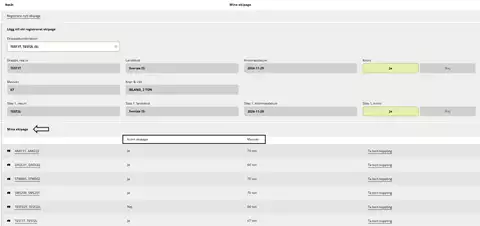

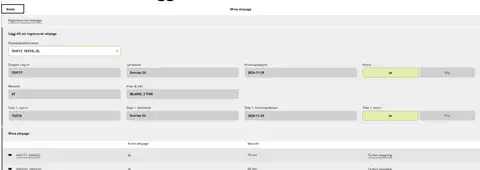

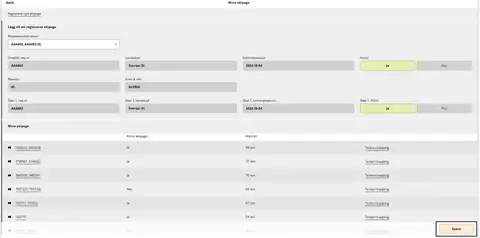

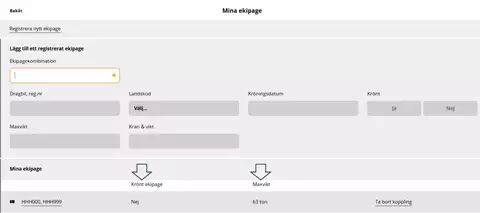

Under "Mina ekipage" (My Vehicle combinations) you have an overview of each Vehicle combination. You can se maximum weight and status of the Vehicle combination and whether the bunks are crowned. Crowned bushels are not shown (Image 8).
Image 8

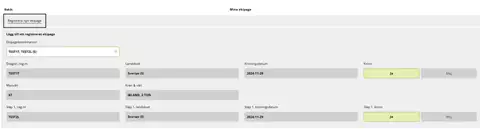

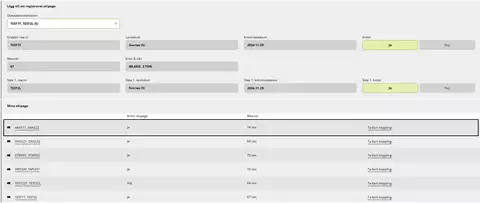

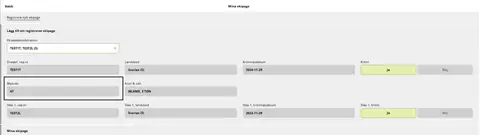

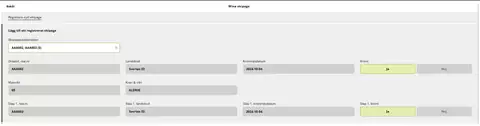

When you choose a Vehicle combination, information about the combination will appear (Image 9).
It is important that you check the information about the tractor unit and trailers is correct.
Image 9
Incorrect "Maxvikt" (maximum weight) on the Vehicle combination (Ekipaget), can affect "Transportprisräkningen" (the transport price bill), depending on what the agreements look like.
If you state a different maximum weight in the transport data (road icon) in Chaufförsklienten/the Driver Client, than the weight stated in "Ekipageregistret" (the Vehicle combination register), (Image 10), it is the weight in the transport data that will be submitted to the system.
If you submit transport information from a transport management system, it is the maximum weight from the transport management system that applies and is submitted to "Affärssystemet" (the business system.
If you have set different weights in the external system and in Chaufförsklienten/the Driver Client, the maximum weights may differ.
If "Befraktaren" (the Charterer) has set "Ekipagekontrollen" (Vehicle combination control) "Ja" (Yes), the maximum weight that has been saved in the system will be the governing factor in the price lists.
If the "Ekipagekontrollen" (Vehicle Combination control), is set to "Nej" (No), it will be calculated on the maximum weight that comes from Chaufförsklienten/the Driver Client transport information, or "Transportledningssystemet" (Transport management system).
Image 10

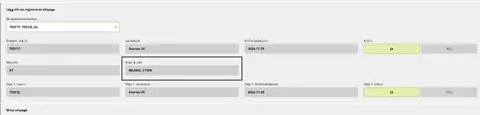

In the "Kran & vikt" (Crane & weight box), you can see the setting of the crane and whether there is a crane weight (Image 11).
The box says "Ibland" (Sometimes), and "2 ton" (2 tons).
- "Ibland" (Sometimes) indicates that you have a removable crane. Meaning, that you have to state at each delivery whether you have a crane or not when the measurement occurs.
- ” 2 ton" (2 tons) is the weight of the crane.
It is "Mätaren" (the Measurer) that enters the weight of the crane into Chaufförsklienten (the Driver Client). You can change the setting on the tap, read more in chapter "Always crane, Never crane, Sometimes crane", how to do it.
If information about "Kran" (the Crane), is incorrect, it affects the load weight of raw material and transport price calculation. This applies to both the weight of the crane and how you state that you have a crane or not at the weigh-in.
Image 11

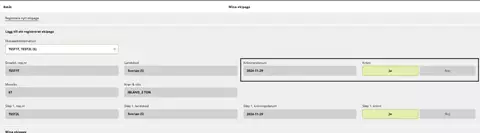

"Krönt ekipage och kröningsdatum" (Crowned Vehicle combination and crown date) (Image 12). Coronation date is the date that a moth has crowned the banks and "Ja eller Nej" (Yes or No) shows whether it is crowned. Right now we only show benches that are crowned and no bushels (skäppor).
Image 12
Click "Bakåt" (Back) to return to the home page (Image 13).
Image 13

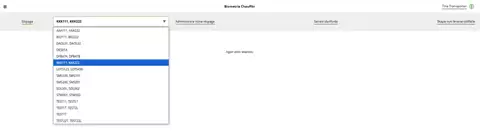

The latest added Vehicle combination (ekipaget) is at the top and by clicking on the "arrow" you will get all your Vehicle combinations in the drop-down list, which is posted under "Mina ekipage" (My Vehicle combinations). See Image 14.
Image 14
The Vehicle combination is not in Chaufförsklienten (the Driver Client) -Register a new Vehicle combination
You search for a Vehicle combination in the search box to add the Vehicle combination to "Mina ekipage" (My Vehicle combinations) and the Vehicle combination is not available as an option. (Image 1) You will then need to set up a new Vehicle combination.
Is the tractor unit available, but not the trailer? Then you need to set up a new Vehicle combination.
Image 1

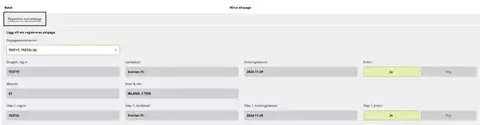

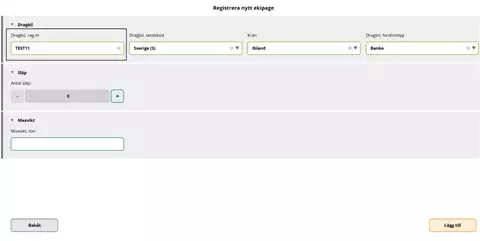

Click on "Registrera nytt ekipage" (Register new Vehicle combination). See Image 2.
Image 2

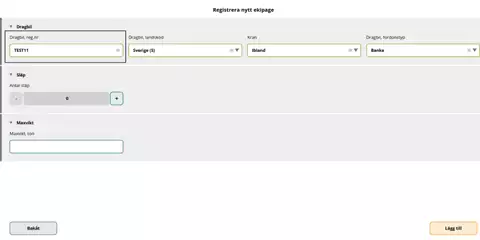

Fill in your "Registration number" (Dragbil, reg nr.) on the tractor unit. See Image 3.
Image 3

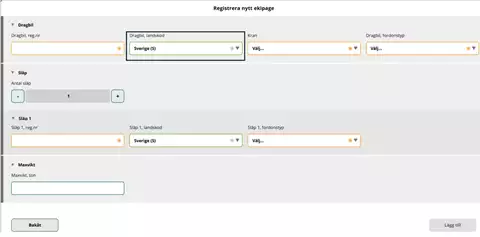

Sweden is pre-filled. If you click on the arrow in the box, a drop-down list will appear that allows you to change the country of the tractor unit (Image 4).
Image 4

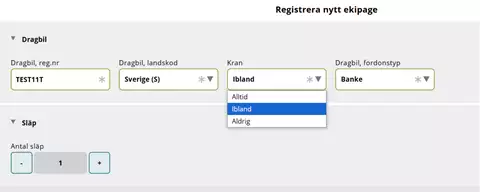

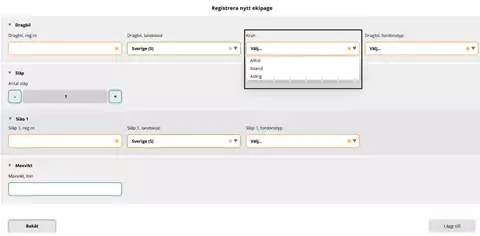

Fill in "Kran" (Crane) on the tractor unit. (Image 5)
- "Alltid" (Always) - An attached crane on the tractor unit
- "Ibland" (Sometimes) - Detachable crane
- "Aldrig" (Never) - There is no crane on the tractor unit
Image 5

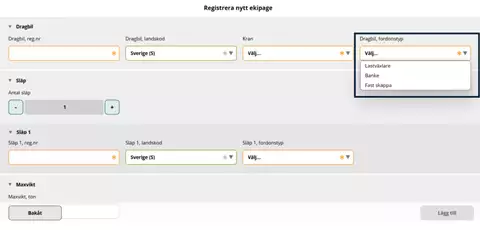

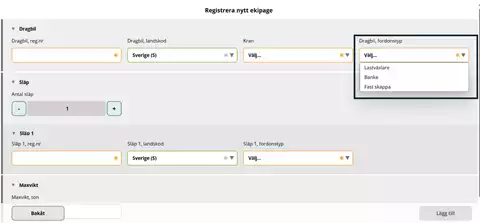

Fill in "Fordonstyp" (Vehicle type) on the tractor. (Image 6)
- "Lastväxlare" (Hook lift truck) - The tractor unit does not have bunks (Banke), Fixed load unit (Fast skäppa) no Measurement unit ID (Skäppa ID), or Measurement unit ID (Skäppa ID) sometimes (Ibland). In cases where there is, Measurement unit ID (Skäppa ID) sometimes (Ibland), you need to enter the Measurement unit ID (Skäppa ID) when there is a measurement flow with Fixed container measurement (Skäppmätning).
- "Banke" (Banks).
- "Fast Skäppa" (Fixed load unit).
Image 6

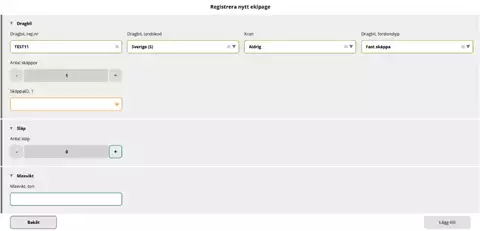

If you choose "Fast Skäppa" (Fixed load unit), you must state "Skäppa ID" (the correct Fixed load ID), as "Skäppan" (the Measurement unit). See Image 7.
The "Skäppa ID" (Fixed load ID), that you choose will be given as a default, when you are to "Leveransavisera" (Deliver the notification). It is possible to change "Aviseringsläget" (the Notification mode).
Image 7

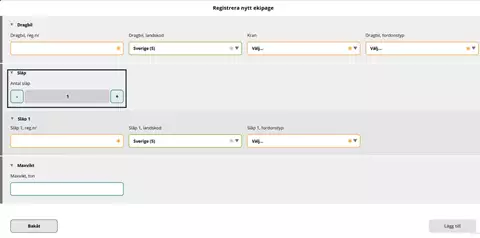

Select the number of trailers by pressing "+ or –". See Image 8.

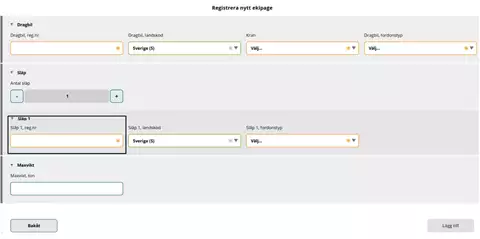

Fill in your "Registreringsnummer" (Registration number) on trailer 1. See Image 9.
Image 9

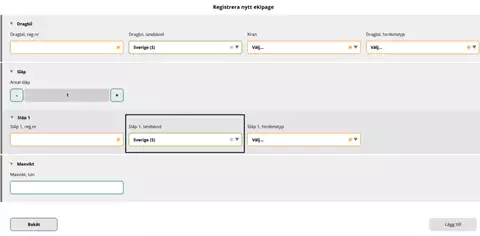

Sweden is pre-filled. If you click on the "arrow”, a drop-down list will appear that allows you to change the country on the trailer (Image 10).
Image 10

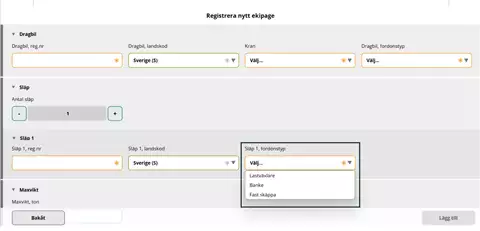

Fill in "Fordonstyp" (Vehicle Combination type) on Trailer 1 (Image 11).
- Lastväxlare (Hook lift truck) - The tractor unit does not have "Banke" (Bunks), "Fast skäppa" (Fixed load unit), no "Skäppa ID" (Measurement unit ID), or "Skäppa ID Ibland" (Measurement unit ID sometimes).
In cases where there is, Skäppa ID (Measurement unit ID) sometimes, you need to enter the Skäppa ID (Measurement unit ID) when there is a measurement flow with Skäppmätning (Load unit measurement). - Banke (Banks).
- Fast Skäppa (Fixed load unit).
Image 11

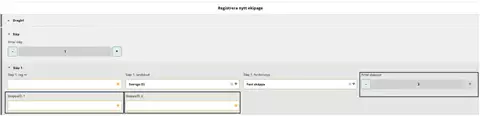

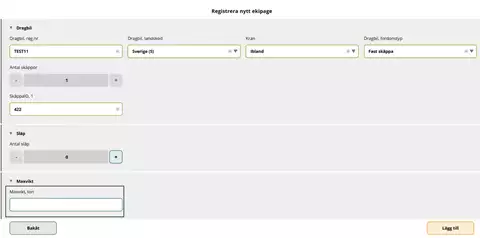

If you choose "Fast skäppa" (a Fixed load unit), you have to specify the number of "Skäppor" (Measurements units) and what "Skäppa ID" (Measurement unit ID), it is on each "Skäppa" (Measurement unit). See Image 12.
Image 12

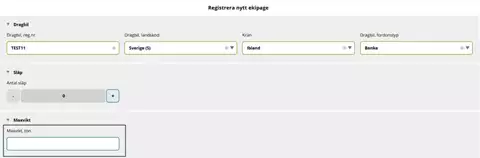

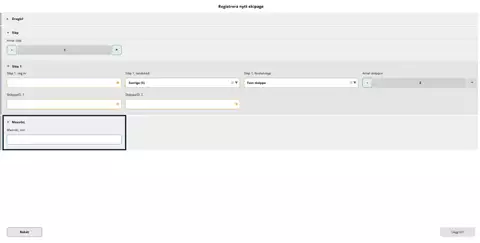

Fill in the maximum weight of "Ekipaget" (the Vehicle combination), that is the maximum allowed with load (Image 13). It is a voluntary task.
If you fill in "Maxvikt" (the maximum weight), the maximum weight will be included in "Transportuppgifter" (the Transport information). You don't have to fill in that field every time. In "Transportuppgifter" (Transport details), the field is mandatory.
Image 13

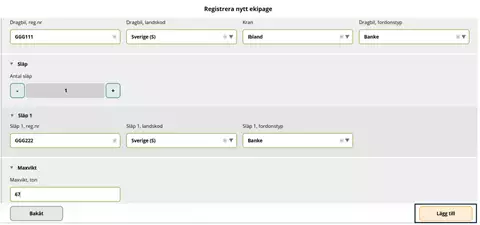

When all the required fields are filled in, add your Vehicle combination. Click "Lägg till" (Add). See Image 14.
Image 14

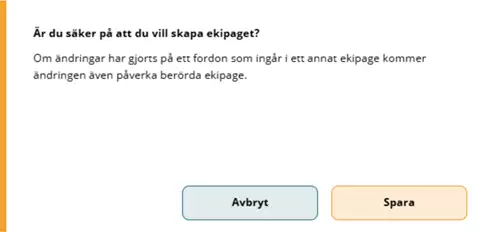

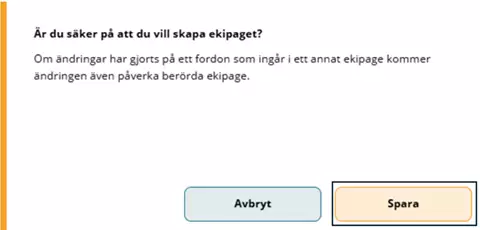

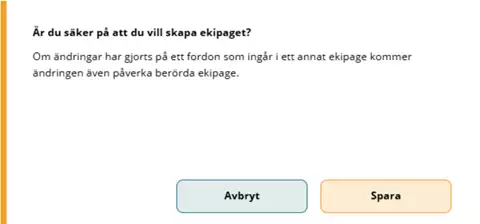

A dialogue box will appear, with a control question (Image 15). Click "Spara" (Save) if you want to save your Vehicle combination.
Image 15
When you have added your Vehicle combination, you return to the start page "Mina ekipage" (My Vehicle Combinations).
In "Mina ekipage" (My Vehicle combinations), you can see if the Vehicle combination has "Krönta bankar" (crowned bunks), and if there is any "Maxvikt" (Maximum weight), registered on the Vehicle comination (Image 17).
Image 16

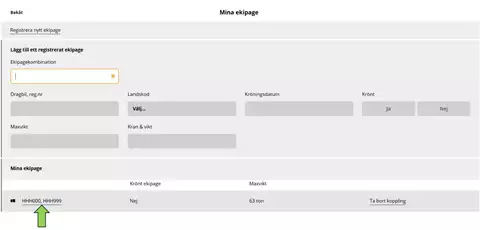

If you click on the "underline" (See the green arrow), you will see the "bankbredd" (bank width) and whether the vehicle combination is approved for "tara" (Tare). If it is approved for tare and there is taravikt (tare weight) and medeltara (medium tare), that information is on that page (Image 18).
Image 17
To go back to the start page, and be able to start a delivery session, click "Bakåt" (Back). See Image 19.
Image 18
Remove Vehicle combinations from Mina ekipage (My Vehicle Combinations)
To remove a Vehicle combination from "Mina ekipage" (My Vehicle Combinations), click on "Administrera mina ekipage" (Manage My Combinations). See Image 1.
Image 1

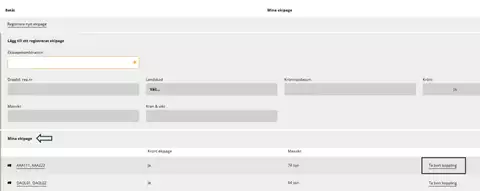

Under "Mina ekipage" (My Vehicle combinations), you can find which Vehicle combination you want to remove. Click on "Ta bort koppling" (Remove link), and the vehicle combination will disappear (Images 2 and 3).
The Vehicle combination will remain in the Mätplatsstödet (Measurement Site System) and Chaufförsklienten (the Driver Client). You can at any time, add the vehicle combination again.
Image 2
Image 3
Check a vehicle for the Tare weight (Taravikt) and registered Bank width (Bankbredd)
Image 1
Under "Mina ekipage" (My Vehicle combinations), click on "Aktuellt ekipage" (Current Vehicle combination). See Image 2.
Image 2

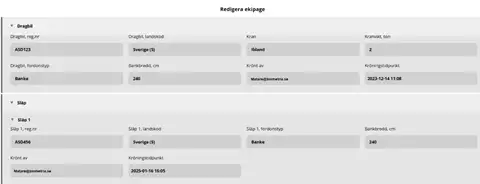

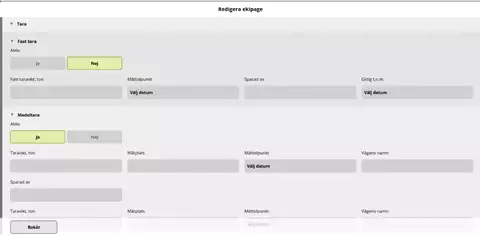

When you have clicked on the Vehicle combination, you will see a view, that you can scroll in (Images 3,4 and 5). In this view, you can see "Bankbredd" (the bank width), and "Kranvikt" (crane weight), which is registered by "Mätaren" (the Measurer).
You can see how your Vehicle combination is set up, whether the Vehicle combination can run on "Fast tara" (Solid tare), or "Medeltara" (Medium tare).
In image 4, "Medeltaran" (the Medium tare) is "Ja" (Yes).
If there is a measurement service, this Vehicle combination is ready to run on medium tare.
The Measurer sets the setting of Medium tare and Solid tare.
Image 3
Image 4
Image 5
As a Driver, you can change the maximum weight.

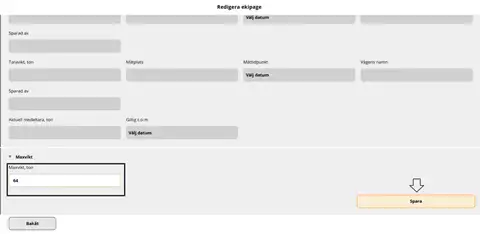

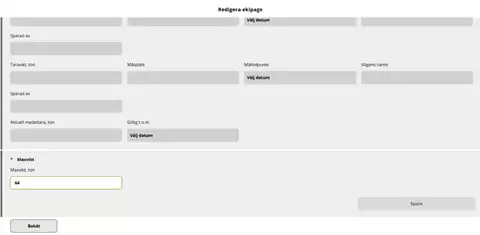

Click in "Maxvikt" (the box Maximum Weight). The box "Spara" (Save), becomes available (Image 6).
Change the weight and "Spara" (Save). The weight you have saved, will be pre-filled when you submit transport information in Chaufförsklienten (the Driver Client).
Click on "Bakåt" (Back) to get back to "Mina ekipage" (My Vehicle combination).
Image 6

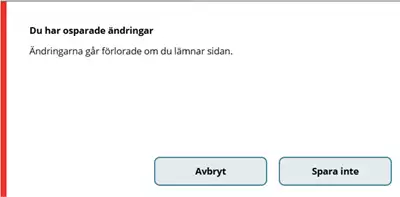

If you have changed the maximum weight and clicked "Bakåt" (Back), without saving, a dialog box will appear (Image 7).
If you click "Avbryt" (Cancel), you will stay at the page of the information about your Vehicle combination.
If you click "Spara inte" (Do not save), you will return to "Mina ekipage" (My Vehicle Combinations).
Image 7
If "Befraktaren" (the Original Logistics Buyer Agent) has "Ekipagekontroll" (Vehicle combination control) "Ja" (Yes) in "Aktörsregistret" (the Entity register) in "Affärssystemet" (the Business system), the maximum weights in the Chaufförsklienten (Driver Client)/Mätplatsstödet MPS (Measurement Site System) may differ from what is stated in the vehicle combination register in the Business system. In these cases, it is always the maximum weight in the system that applies when calculating value.
If "Befraktaren" (the Original Logistics Buyer Agent) has "Ekipagekontroll" (Vehicle combination control) "Nej" (No) in the Operator register, in the Business system, it is the maximum weight (Maxvikt), that you enter in the Transport information in Chaufförsklienten (the Driver Client), that will be sent to the system (Image 8). If you change the maximum weight here on the transport information (Image 8), the maximum weight in the Driver Client's vehicle register will not be changed.
Image 8
The information entered in Chaufförsklienten (the Driver Client)/Mätplatsstödet MPS (Measurement Site System) vehicle combination register, is the information that is pre-filled in the transport information in Chaufförsklienten (the Driver Client). See Image 8.
The maximum weight (Maxvikten) in the Vehicle combination register, in the Business system, will be updated continuously after each delivery with the maximum weight you stated in the Transport information (Image 8).
If you notify delivery from an external transport system, the maximum weight specified in the external system will be sent with the transport information to the vehicle combination register in the business system.
The maximum weight in the vehicle combination register in the business system, will be updated continuously after each delivery.
The maximum weight in Chaufförsklienten (the Driver Client) or Mätplatsstödet MPS (Measurement Site System) will not be updated with the maximum weight sent from the External system.
Changing the Fixed Load Unit ID on an existing vehicle combination
When you notify delivery in Chaufförsklienten (the Driver Client), you will receive the pre-selected measurement unit, on the tractor unit and trailer. If the information is not correct, you can change it in settings.
Select "Administrera mina ekipage" (Administer my combination). See Image 1.
Image 1
Select "Registrera nytt ekipage" (Register a new Vehicle combination). See Image 2.
Image 2
Fill in the full registration number of the tractor unit. Once the full registration number is filled in, the information in the black-circled fields will appear automatically (Image 3).
Image 3

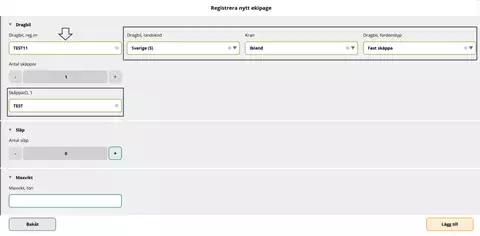

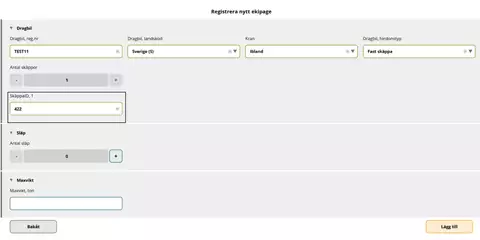

Change the "Skäppa ID, 1" (Measurement unit ID, 1) that you have on the tractor unit. See Image 4.
Image 4
Type in your "Maxvikt" (Maximum weight) on the vehicle and click "Lägg till" (Add). See image 5.
Image 5

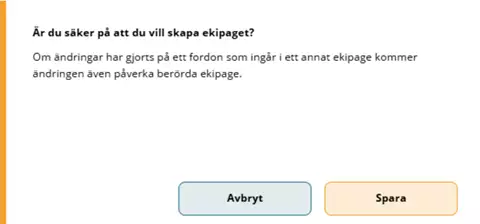

A dialogue box will now appear (Image 6). Click "Spara" (Save) and you will return to the page "Mina Ekipage" (My Vehicle Combinations).
Image 6
Always crane, Never crane, Sometimes crane
This is the place, you set up crane preferences for the delivery notification in Chaufförsklienten (the Driver Client).
Click on "Administrera mina ekipage" (Manage my combinations). See Image 1.
Click on "Registrera nytt ekipage" (Register new vehicle). See image 2.
Image 2
Fill in the full registration number of the tractor unit (Image 3).
Image 3
When you have entered your registration number on the tractor, information will appear about what the tractor unit looks like (Image 4). Under "Tap" there is a drop-down list, where you can choose the setting:
- "Alltid" (Always) - An attached crane on the tractor unit.
- "Ibland" (Sometimes) - Detachable crane.
- "Aldrig" (Never) - There is no crane on the tractor unit.
Image 4

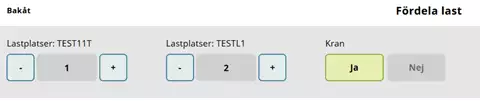

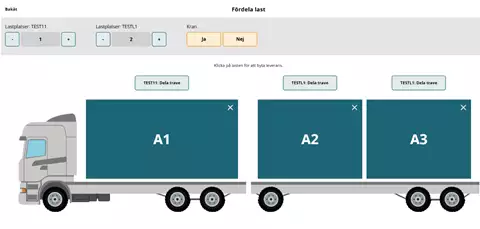

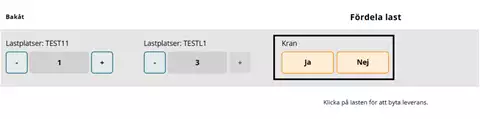

The setting you choose affects how the load is distributed when creating "Nytt leveranstillfälle" (New Delivery Occasion).
If it is set to "Ibland" (Sometimes), you can always choose "Ja" (Yes) and "Nej" (No). See Image 5.
Image 5
If it is set to "Alltid" (Always) it will be pre-filled with "Ja" (Yes) and cannot be changed in the distribute Load view (Image 6).
Image 6

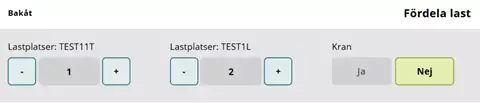

If it is set to "Aldrig" (Never) it will be pre-filled with "Nej" (No) and it will not be possible to change it in the distribute loads view. See Image 7.
Image 7
It is important that you have the right settings to ensure accurate measurement of Råmaterial (raw material), Taravikter (Tare weights), Medeltara (Medium tare), and Värdeberäkningen (the Value calculation) of the transport.
Fill in the "Maxvikt" (Maximum weight) and click "Lägg till" (Add). See image 8.
Image 8
A dialogue box will now appear (Image 9). Click "Spara" (Save) and you will return to the page "Mina Ekipage" (My Vehicle Combinations).
Image 9
Change country of the existing tractor unit or trailer
If you change the country of an existing "Dragbil" (tractor unit) or "Släp" (trailer), this vehicle will become a completely new vehicle. Below it is shown how to change the country of an existing vehicle.
- Click on "Administrera mina ekipage" (Manage My Vehicle Combinations). See Image 1.
Image 1
Click on "Registrera nytt ekipage" (Register new vehicle). See Image 2.
Image 2

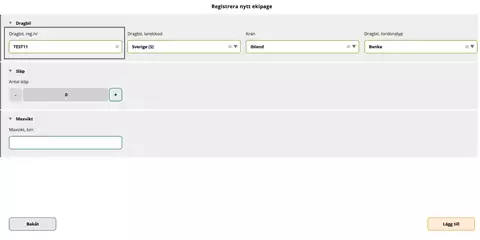

Fill in the full registration number of the "Dragbil" (Tractor unit). See Image 3.
Image 3

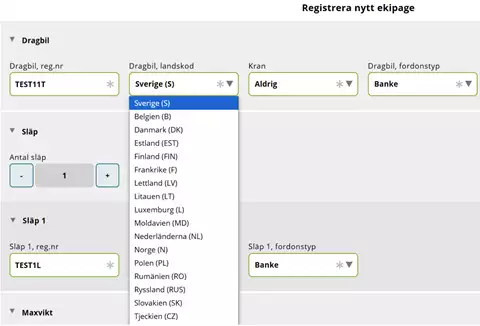

Change the country in the drop-down menu (Image 4).
Image 4

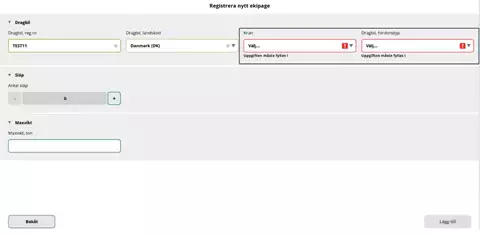

After changing the country, you need to enter the "Kran" (Crane) and "Fordonstyp" (Vehicle type). See Image 5.
Filling in the "Maxvikt" (Maximum Weight) is optional. If you provide a maximum weight, it will be pre-filled in the transport details in Chaufförsklienten (The Driver Client), so you will not need to enter it for each delivery occasion.
Click "Lägg till" (Add) once you have filled in the details.
Image 5
A dialogue box will now appear (Image 6). Click "Spara" (Save) and you will be returned to "Mina Ekipage" (My Vehicle Combinations).
Image 6

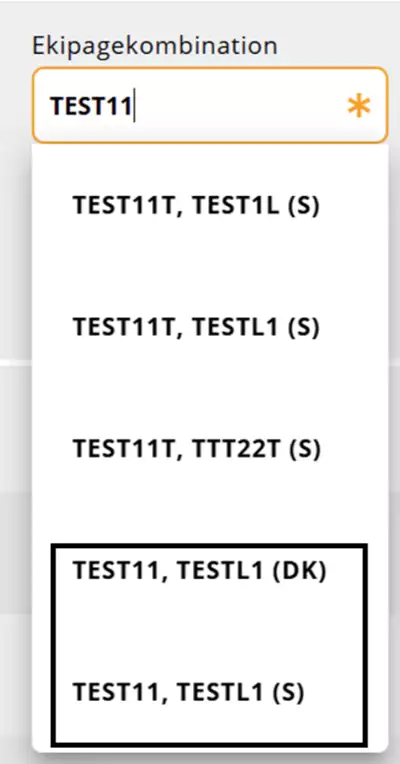

In "Ekipagekombination" (Vehicle Combination), there will be two identical registration numbers with different countries (Image 7).
If you use the same registration number and there are different countries, there will also be two different vehicles in the Business System.
Image 7
Change Bank, Fixed Container, Load Carrier
If you change the vehicle type of the "Dragbil" (tractor unit) or "Släp" (trailer), it will not create a new vehicle in the business System or Chaufförsklienten (The Driver Client).
However, if you change the country of an existing tractor unit or trailer, it will be considered a completely new vehicle.
This is how you change the country on an existing vehicle:
- Click on "Administrera mina ekipage" (Register My Vehicle Combinations). See Image 1.
Image 1
Click on "Registrera nytt ekipage" (Register new vehicle). See Image 2.
Image 2
Fill in the full registration number of the "Dragbil" (Tractor unit). See Image 3.
Image 3
The vehicle type Load Carrier (Lastväxlare) should be used if you have no "Skäppa ID" (Measurement unit ID), no "Banke" (Bank) or "Skäppor" (Measurement units) on the tractor unit or trailer.
If you have a "Skäppa ID" (Measurement unit ID), but it is not a "Fast skäppa" (Fixed load unit), you should use Lastväxlare (Load Carrier).
Image 4
If you choose Fast skäppa (Fixed load unit), you need to fill in the Skäppa ID (Measurement unit ID). See Image 5.
Image 5
If you have selected Lastväxlare (Load Carrier) on tractor units and trailers, the vehicle in delivery notification mode will look like image 6 below in Chaufförsklienten (the Driver Client).
Image 6
When you have selected the vehicle type and filled in the Skäppa ID (Measurement unit ID) where the choice was Fast skäppa (Fixed Load Unit), then click Lägg till (Add).
A dialogue box will now appear (Image 7). Click Spara (Save) and you will be returned to the page Mina Ekipage (My Vehicle Combinations).
Image 7
